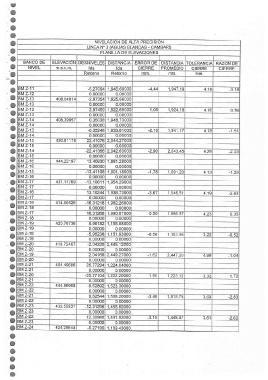

Page 221 - RELEVAMIENTO TOPOGRÁFICO VOLUMEN III

NIVELACION DE ALTA PRECISIC)N
LINEA N° 3 (AGUAS BLAVCAS -CAMBARl)
PLANILLA DE ELEVACIONES

BANCO DE ELEVACIC)N DESNIVELES DISTANCIA ERROR DE DISTANCIA TOLERANCIA RAZON DE
NIVEL in.S.n.in. Ida Ida CIEF!RE PROMEDIO CIERRE CIERRE
Retorno Retorno mm. mts. mm.

BM Z.11 -5.27094 1,945.69000 4.44 1, 947.19 4.19 -3.18
BM Z-12 0.00000 0.00000
BM Z-13 408.04814 -2.97354 1,925.66000
BM Z-13 0.00000 0.00000
BM Z-12 2.97459 1,922.69000 1.05 1, 924.18 4.16 0.76
BM Z-13 0.00000 0.00000
BM Z-14 408.39957 0.35038 1,948.73000
BM Z-14 0.00000 0.00000
BM Z-13 -0.35248 1,933.61000 -2.10 1,941.17 4.18 -1.51
BM Z-14 0.00000 0.00000
BM Z-15 430.81178 22.41076 2,044.27000
BM Z-15 0.00000 0.00000
BM Z-14 -22.41366 2,042.63000 -2.90 2,043.45 4.29 -2.03
BM Z-15 0.00000 0.00000 II
BM Z-16 444.22197 13.40930 1,881.28000
I
BM Z-16 0.00000 0.00000
BM Z-15 -13.41108 1,901.18000 -1.78 1,891.23 4.13 -1.29
BM Z-16 0.00000 0.00000
BM Z-17 431 .1 1 769 -13.10611 1,954.29000
BM Z-17 0.00000 0.00000
BM Z-16 13.10244 1,938.73000 -3.67 1,946.51 4.19 -2.63
BM Z-17 0.00000 0.00000
BM Z-18 414.80526 -16.31218 1,982.26000
BM Z-18 0.00000 0.000001
BM Z-17 16.31268 1,990.87000 0.50 1,986.57 4.23 0.35
BM Z-18 0.00000 0.00000
BM Z-19 420.76736 5.96182 1,155.98000
BM Z-19 0.00000 0.00000
BM Z-18 -5.96238 1,151.93000 -0.56 1,153.96. 3.22 -0.52
BM Z-19 0.00000 0.00000 I
BM Z-20 418.72487 -2.04330 2,445.12000 i
BM Z-20 0.00000 0.00000
BM Z-19 2.04168 2,449.27000 -1.62 2,447.20 4.69 -1.04
BM Z-20 0.000001 0.00000
BM Z-21 IBMZ-21I 454.49686 35.77294 1,224.04000
0.00000 0.00000i
BM Z-20 -35.77104 1,222.20000! 1.90 1,223.12 3.32 1.72
BM Z-21 0.00000 0.00000
BM Z.22 444.86968 -9.62892 1,523.30000
BM Z-22 0.00000 0.00000
BM Z-21 9.62544 1,508.20000 -3.48 1,515.75 3.69 -2.83
BM Z-22 0.00000 0.00000
BM Z-23 432.55831 -12.31295 1,455.82000
BM Z-23 0.00000 0.00000
BM Z-22 12.30980 1,441.92000 -3.15 1,448.87 3.61 -2.62
BM Z-23 0.00000 0.00000
BM Z-24 424.28644 -8.27196 1,189.43000
