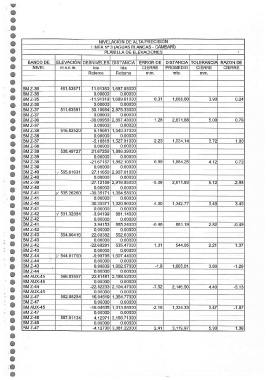

Page 404 - RELEVAMIENTO TOPOGRÁFICO VOLUMEN III

NIVELAcloN DE ALTA PRECISIO N
LINEA N° 3 (AGUAS BLANCAS -CAMBARi)
PLANILLA DE ELEVACIONES

BANCO DE ELEVACIC)N DESNIVELES DISTANCIA ERROR DE DISTANCIA TOLERANCIA RAZON DE
NIVEL in.S.n.in. Ida Ida CIERRE PROMEDIO CIERRE CIERRE
Retorno Retorno mm. mts. mm.

BM Z-36 481.53571 11.91350 1,687.58000
BM Z-36 0.00000 0.00000
BM Z-35 -11.91319 1,689.61000 0.31 1,688.60 3.90 0.24
BM Z-36 0.00000 0.00000
BM Z-37 511.63591 30.10084 2,876.33000
BM Z-37 0.00000 0.00000
BM Z-36 -30.09956 2,867.43000 1.28 2,871.88 5.08 0.76
BM Z-37 0.00000 0.00000
BM Z-38 516.82520 5.19041 1,540.37000
BM Z-38 0.00000 0.00000
BM Z-37 -5.18818 1,527.91000 2.23 1, 534.14 3.72 1.80
BM Z-38 0.00000 0.00000
BM Z-39 538.49727 21.67256 1,886.39000
BM Z-39 0.00000 0.00000
BM Z-38 -21.67157 1,882.10000 0.99 1,884.25 4.12 0.72
BM Z-39 0.00000 0.00000
BM Z40 t/ 565.61631 27.11650 2,907.01000
BM Z-40 0.00000 0.00000
BM Z-39 -27.12159 2,916.85000 -5.09 2,911.93 5.12 -2.98
BM Z-40 0.00000 0.00000
BM Z-41 / 535.26260 -30.35171 1,364.58000
BM Z-41 0.00000 0.00000
BM Z-40 30.35571 1,320.96000 4.00 1,342.77 3.48 3.45
BM Z-41 0.00000 0.00000
BM Z-42 V' 531.32084 -3.94199 881.14000
BM Z-42 0.00000 0.00000
BM Z-41 3.94153 885.24000 -0.46 883.19 2.82 -0.49
BM Z-42 0.00000 0.00000
BM Z-43 554.00416 22.68382 552.63000
BM Z-43 0.00000 0.00000
BM Z-42 -22.68281 535.47000 1.01 544.05 2.21 1.37
BM Z-43 0.00000 0.00000
BM Z-44 \ L/ 544.0170o -9.98796 1,607.44000
BM Z-44 0.00000 0.00000
BM Z-43 , 9.98636 1,602. 57000 -1.6 1,605.01 3.80 -1.26
BM Z-44 0.00000 0.00000
BM AUX-45 566.83557 22.81481 2,188. 52000
BM AUX45 0.00000 0.00000
BM Z-44 -22.82233 2,104.47000 -7.52 2,146.50 4.40 -5.13
BM AuX-45 0.00000 0.00000
BM Z-47 582.88284 16.04619 1,354. 77000
BM Z-47 0.00000 0.00000
BM AUX45 -16.04835 1,313.88000 -2.16 1,334.33 3.47 -1.87
BM Z47 0.00000 0.00000
BM Z48 587.01134 4.12971 3,158.71000
BM Z-48 0.00000 0.00000
BM Z-47 -4.12730 3,081.22000 2.41 3,119.97 5.30 1.36
