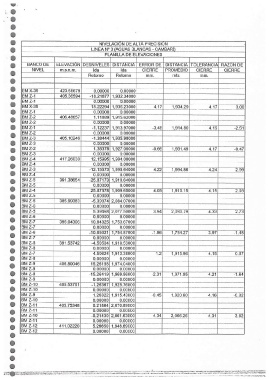

Page 415 - RELEVAMIENTO TOPOGRÁFICO VOLUMEN III

NIVELACION DE ALTA PRECIsl ON
LINEA N° 3 (AGUAS BLja`NCAS -CAMBARi)
PLANILLA DE ELEVACIONES
BANC0 DE ELEVH5T5fi DESNIVELES DISTANCIA ERROR DE DISTANCIA TOLERANCIA RAZON DE
NIVEL in.S.n.in. Ida Ida CIERRE PROMEDIO CIERRE CIERRE
Retorno Retorno mm. mts. mm.

BM X-39 423.58679 0.00000 o.ooch6-
BM Z-1 405.36594 -18.21877 1,932.34000
BM Z-1 0.00000 0.00000
BM X-39 18.22294 1,936.23000 4.17 1,934.29 4.17 3.00
BM Z-1 0.00000 0.00000
BM Z-2 406.48657 1 .1 1889 1, 915.62000
BM Z-2 0.00000 0.00000
BM Z-1 -1.12237 1,913.97000 -3.48 1,914.80 4.15 -2.51
BM Z-2 0.00000 0.00000
BM Z-3 405.10246 -1.38444 1,935. 98000
BM Z-3 0.00000 0.00000
BM Z-2 1.38378 1,927.00000 -0.66 1,931.49 4.17 -0.47
BM Z-3 0.00000 0.00000
BMZ4 417.26030 12.15995 1,994.08000
BMZ4 0.00000 0.00000
BM Z-3 -12.15573 1,995.64000 4.22 1,994.86 4.24 2.99
BMZ4 0.00000 0.00000
BM Z-5 391.38654 -25.87173 1, 910.64000
BM Z-5 0.00000 0.00000
BM Z-4 25.87578 1,909.65000 4.05 1,910.15 4.15 2.93
BM Z-5 0.00000 0.00000
BMZ6 385.99383 -5.39074 2,084.07000
BM Zno 0.00000 0.00000
BM Z-5 5.39468 2,077.50000 3.94, 2,080.79 4.33 2.73
BM Z-6 0.00000 0.00000
BM Z-7 396.04306 10.04825 1,753.67000
BM Z-7 0.00000 0.00000
BM Z-6 -10.05021 1,754.87000 -1.96 . 1,754.27 3.97 -1.48
BM Z-7 0.00000 0.00000
BM Z-8 391.53742 4.50504 1,918.53000
BM Z-8 0.00000 0.00000
BM Z-7 4.50624 1,913.38000 1.2 1,915.96 4.151 0.87
BM Z-8 0.00000 0.00000
BM Z-9 406.80046 15.26188 1, 974.04000
BM Z-9 0.00000 0.00000
BM Z-8 -15.26419 1,969.86000 -2.31 1,971.95 4.21 -1.64
BM Z-9 0.00000 0.00000
BM Z-10 405.53701 -1.26367 1,925.76000
BM Z-10 0.00000 0.00000
BM Z-9 1.26322 1,915.43000 -0.45 1,920,60 4.16 -0.32
BM Z-10 0.00000 0.00000
BM Z-11 405.75348 0.21864 2,070.89000
BM Z-11 0.00000 0.00000
BM Z-10 -0.21430 2,061.63000 4.34 2,066.26 4.31 3.02
BM Z-11 0.00000 0.00000
BM Z-12 41 1 . 02220 5.26650 1,948.69000
BM Z-12 0.00000 0.00000
