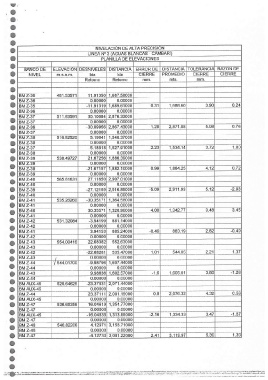

NIVELACION DE ALTA PRECISION
LINEA N° 3 (AGUAS BLjINCAS -CAMBARi)
PLANILLA DE ELEVAcloNES
BANCO DE ELEVACIC)N DESNIVELES DISTANCIA ERROR DE DISTANCIA TOLERANCIA RAION DE
NIVEL in.S.n.in. Ida -rfetorno CIERRE PROMEDIO CIERRE CIERRE
Ida
RFt6rno mm. mts. mm.
BM Z-36 481.53571 11.91350 1,687.58000
BM Z-36 0.00000 0.00000
BM Z-35 ~11.91319 1,689.61000 0.31 1,688.60 3.90 0.24
BM Z-36 0.00000 0.00000
BM Z-37 511.63591 30.10084 2,876.33000
BM Z-37 0.00000 0.00000
BM Z-36 -30.09956 2,867.43000 1.28 2,871.88 5.08 0.76
BM Z-37 0.00000 0.00000
BM Z-38 516.82520 5.19041 1,540.37000
BM Z-38 0.00000 0.00000
BM Z-37 -5.18818 1, 527.91000 2.23 1,534.14 3.72 1.80
BM Z-38 0.00000 0.00000
BM Z-39 538.49727 21.67256 1,886.39000
BM Z-39 0.00000 0.00000
BM Z-38 -21.67157 1,882.10000 0.99 1,884.25 4.12 0.72
BM Z-39 0.00000 0.00000
BM Z40 565.61631 27.11650 2,907.01000
BM Z40 0.00000 0.00000
BM Z-39 -27.12159 2,916.85000 -5.09 2,911.93 5.12 -2.98
BM Z40 0.00000 0.00000
BM Z41 535.26260 -30.35171 1,364. 58000
BM Z41 0.00000 0.00000
BM Z40 30.35571 1,320.96000 4.00 1,342.77 3.48 3.45
BM Z41 0.00000 0.00000
BM Z42 531.32084 -3.94199 881.14000
BM Z42 • 0.00000 0.00000
BM Z41 3.94153 885.24000 -0.46 883.19 2.82 -0.49
BM Z42 0.00000 0.00000
BM Z-43 554.00416 22.68382 . 552.63000
BM Z43 0.00000 0.00000
BM Z-42 ~22.6828i 535.47000 1.01 544.05 I 2.21 1.37
BM Z43 / 0.00000 0.00000
BM Z44 V 544.01700 -9.98796 1,607.44000
BM Z44 0.00000 0.00000
BM Z-43 9.98636 1,602.57000 -1.6 1,605.01 3.80 -1.26
BM Z-44 0.00000 0.00000
BM AUX45 520.64629 -23.37031 2,071.44000
BM AUX-45 0.00000 0.00000
BM Z44 23.37111 2,081.19000 0.8 2,076.32 4.32 0.56
BM AUX45 0.00000 0.00000
BM Z-47 536.69356 16.04619 1,354.77000
BM Z-47 0.00000 0.00000
BM AUX45 -16.04835 1,313.88000 -2.16 1,334.33 3.47 -1.87
BM Z47 0.00000 0.00000
BM Z48 540.82206 4.12971 3,158. 71000
BM Z48 0.00000 0.00000
BM Z-47 4.12730 3,081.22000 2.41 I 3,119.97 5.30 1.36
