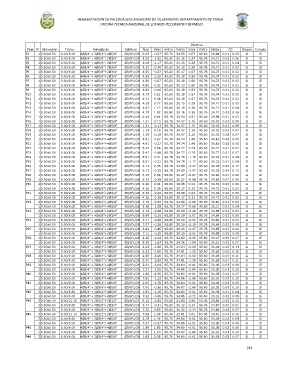

REHABILITACION DE PALEOCAUCES MUNICIPIO DE VILLAMONTES DEPARTAMENTO DE TARIJA
OFICINA TECNICA NACIONAL DE LOS RIOS PILCOMAYO Y BERMEJO
Pésimos
Pilar Pl Dimensión Tramo Armaduras Estribos Nsd Vsdx Vrd1x Vrd2x Vsdy Vrd1y Vrd2y CC Origen Cumple
P1 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 0.63 -0.57 95.76 34.55 0.57 95.60 29.99 0.01 0.03 G Sí
P2 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.22 -1.82 95.60 30.16 0.37 95.76 34.71 0.02 0.06 G Sí
P3 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.08 -1.17 95.60 30.15 0.28 95.76 34.71 0.01 0.04 G Sí
P4 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.10 -0.78 95.60 30.15 0.28 95.76 34.71 0.01 0.03 G Sí
P5 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.55 -0.37 95.60 30.17 0.57 95.76 34.73 0.01 0.02 G Sí
P6 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.58 -0.20 95.60 30.18 0.58 95.76 34.73 0.01 0.02 G Sí
P7 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.59 -0.07 95.60 30.18 0.58 95.76 34.73 0.01 0.02 G Sí
P8 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.80 0.32 95.60 30.19 0.50 95.76 34.74 0.01 0.02 G Sí
P9 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.60 -0.06 95.60 30.18 0.53 95.76 34.73 0.01 0.02 G Sí
P10 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.73 0.21 95.60 30.18 0.57 95.76 34.74 0.01 0.02 G Sí
P11 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.71 0.36 95.60 30.18 0.57 95.76 34.73 0.01 0.02 G Sí
P12 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.09 0.77 95.60 30.15 0.28 95.76 34.71 0.01 0.03 G Sí
P13 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.07 1.17 95.60 30.15 0.28 95.76 34.71 0.01 0.04 G Sí
P14 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.18 1.82 95.60 30.16 0.36 95.76 34.71 0.02 0.06 G Sí
P15 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 0.44 0.64 95.76 34.54 0.57 95.60 29.98 0.01 0.03 G Sí
P16 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 1.21 0.13 95.76 34.57 2.76 95.60 30.02 0.03 0.09 G Sí
P17 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 1.21 -0.13 95.76 34.57 2.76 95.60 30.02 0.03 0.09 G Sí
P18 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 1.19 0.18 95.76 34.57 2.18 95.60 30.02 0.02 0.07 G Sí
P19 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 1.19 -0.18 95.76 34.57 2.18 95.60 30.02 0.02 0.07 G Sí
P20 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 4.91 0.27 95.76 34.74 1.48 95.60 30.19 0.02 0.05 G Sí
P21 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 4.91 -0.27 95.76 34.74 1.48 95.60 30.19 0.02 0.05 G Sí
P22 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 5.47 0.66 95.76 34.77 0.29 95.60 30.22 0.01 0.02 G Sí
P23 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 5.47 -0.66 95.76 34.77 0.29 95.60 30.22 0.01 0.02 G Sí
P24 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 5.61 0.31 95.76 34.78 -1.16 95.60 30.22 0.01 0.04 G Sí
P25 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 5.61 -0.31 95.76 34.78 -1.17 95.60 30.22 0.01 0.04 G Sí
P26 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 6.13 0.35 95.76 34.80 -3.47 95.60 30.25 0.04 0.12 G Sí
P27 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 6.13 -0.35 95.76 34.80 -3.47 95.60 30.25 0.04 0.12 G Sí
P28 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 6.72 0.59 95.60 30.27 -6.97 95.76 34.83 0.07 0.20 G Sí
P29 1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 6.73 -0.59 95.60 30.27 -6.98 95.76 34.83 0.07 0.20 G Sí
P30 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 0.26 0.04 95.60 29.98 0.04 95.76 34.53 0.00 0.00 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.36 0.36 95.60 30.17 0.35 95.76 34.72 0.01 0.02 G Sí
P31 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 0.25 -0.04 95.60 29.98 0.04 95.76 34.53 0.00 0.00 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 4.36 -0.36 95.60 30.17 0.35 95.76 34.72 0.01 0.02 G Sí
P32 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 3.73 -0.57 95.76 34.69 -0.06 95.60 30.14 0.01 0.02 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 5.38 -1.08 95.76 34.77 -0.66 95.60 30.21 0.01 0.04 G Sí
P33 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 2.79 -0.88 95.60 30.09 -0.49 95.76 34.65 0.01 0.03 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 6.99 -0.35 95.60 30.29 -2.07 95.76 34.84 0.02 0.06 G Sí
P34 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 2.71 -0.62 95.60 30.09 -0.52 95.76 34.64 0.01 0.03 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 7.07 -0.38 95.60 30.29 -2.18 95.76 34.84 0.02 0.06 G Sí
P35 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 2.82 -0.45 95.60 30.09 -0.47 95.76 34.65 0.01 0.02 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 7.11 -0.30 95.60 30.29 -2.02 95.76 34.85 0.02 0.06 G Sí
P36 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 2.25 -2.32 95.76 34.62 -0.05 95.60 30.07 0.02 0.07 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 5.35 -1.87 95.76 34.76 -1.54 95.60 30.21 0.03 0.07 G Sí
P37 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 2.63 -4.86 95.76 34.64 -0.03 95.60 30.09 0.05 0.14 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 6.33 -4.85 95.76 34.81 -1.25 95.60 30.26 0.05 0.15 G Sí
P38 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 2.56 -3.90 95.76 34.64 -0.02 95.60 30.08 0.04 0.11 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 6.30 -3.69 95.76 34.81 -1.28 95.60 30.25 0.04 0.11 G Sí
P39 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 2.61 -3.04 95.76 34.64 -0.01 95.60 30.08 0.03 0.09 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 7.37 -1.59 95.76 34.86 -2.84 95.60 30.30 0.03 0.10 G Sí
P40 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 1.82 -2.35 95.76 34.60 -0.01 95.60 30.05 0.02 0.07 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 7.50 -1.23 95.76 34.86 -2.86 95.60 30.31 0.03 0.10 G Sí
P41 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 2.65 -1.79 95.76 34.64 -0.01 95.60 30.09 0.02 0.05 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 7.60 -0.96 95.76 34.87 -2.88 95.60 30.32 0.03 0.10 G Sí
P42 2 0.50x0.50 6.00/8.60 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 1.81 -1.28 95.76 34.60 -0.01 95.60 30.05 0.01 0.04 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 7.52 -0.65 95.76 34.86 -2.72 95.60 30.31 0.03 0.09 G Sí
P43 3 0.40x0.40 9.00/11.10 4Ø3/4"+ 2Ø1/2"+2Ø1/2" Ø3/8"c/21 8.12 -2.92 60.06 23.83 0.89 60.06 23.83 0.05 0.13 G Sí
2 0.50x0.50 6.00/8.60 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 3.41 -0.31 95.60 30.12 0.10 95.76 34.67 0.00 0.01 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 4Ø5/8"+2Ø3/4" Ø3/8"c/26 7.35 0.69 95.60 30.30 -2.44 95.76 34.86 0.03 0.07 G Sí
P44 3 0.40x0.40 9.00/11.10 4Ø3/4"+ 2Ø1/2"+2Ø1/2" Ø3/8"c/21 7.58 2.38 60.06 23.81 0.61 60.06 23.81 0.04 0.10 G Sí
2 0.50x0.50 6.00/8.60 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 2.78 1.46 95.76 34.65 -0.01 95.60 30.09 0.02 0.04 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 7.37 -0.27 95.76 34.86 -2.51 95.60 30.30 0.03 0.08 G Sí
P45 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 1.89 1.83 95.76 34.60 -0.01 95.60 30.05 0.02 0.05 G Sí
1 0.50x0.50 0.00/6.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 7.60 1.00 95.76 34.87 -2.88 95.60 30.31 0.03 0.10 G Sí
P46 2 0.50x0.50 6.00/9.00 4Ø3/4"+ 2Ø3/4"+4Ø5/8" Ø3/8"c/26 1.82 2.35 95.76 34.60 -0.01 95.60 30.05 0.02 0.07 G Sí
